Printhead Quantity: 24
Printhead: Epson l3200-A1
Print Width: 1900mm
Print Colors: CMYK
Max.resolution(DPl): 3200DPI
Max speed CMYK: 1pass 960㎡/h
PARAMETERS
DETAILS

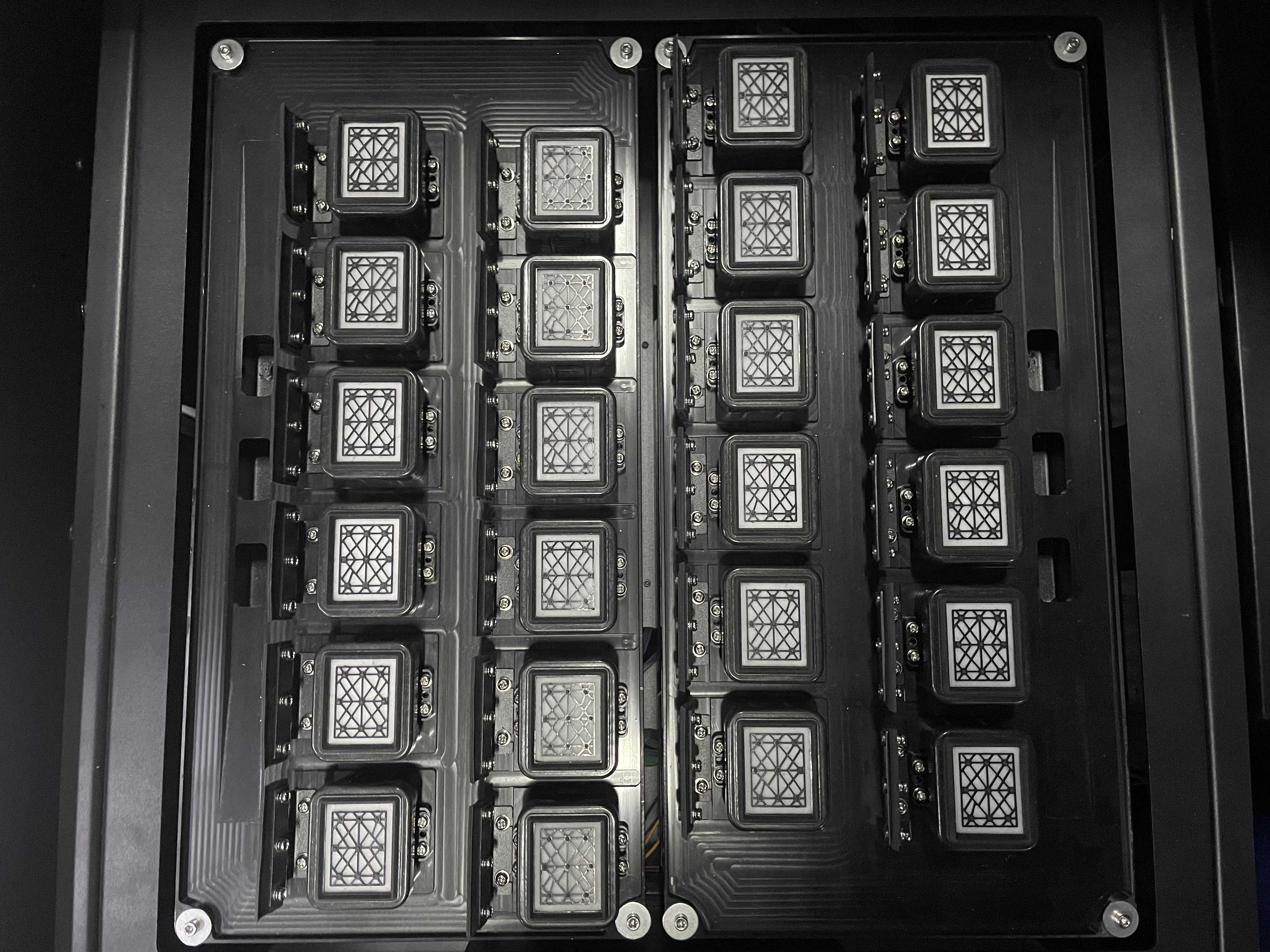

1. EPSON I3200-A1 printhead
EPSON I3200-A1 printhead has 3200 nozzles, variable drop ink technology, improves printing resolution, improves color restoration degree, up to four levels of gray print can be supported.
2. Imported THK Mute Guide Rail
Japanese double THK mute guide rail, moving steadily, longer working life and reducing the resistance and noise of carriage moving during the high speed printing.
3. Industrial Motor
The feeding & take-up system is equipped with industrial motor, which adopts precise servo control to make paper moving more accurate.
4. Anti Collision System in Carriage
lt is easy and convenient to adjust the printhead height according to different media. And anti collision system installed on both sides of carriage, which automatic detect any force on carriage way to protect the printhead inside.
5. Strip Roller
This Textile sublimation Printer has special tension rubber rollers that can reduce dark color job thin paper wrinkle effect.
