Printhead Quantity: 4
Printhead: Epson l3200-A1
Print Width: 1900mm
Print Colors: CMYK/CMYK+4 COLORS
Max.resolution(DPl): 3200DPI
Max speed CMYK: 2pass 180㎡/h
VIDEO
PARAMETERS
DETAILS
1. EPSON I3200-A1 printhead
EPSON I3200-A1 printhead has 3200 nozzles, variable drop ink technology, improves printing resolution, improves color restoration degree, up to four levels of gray print can be supported.
2. Imported THK Mute Guide Rail
Japanese double THK mute guide rail, moving steadily, longer working life and reducing the resistance and noise of carriage moving during the high speed printing.

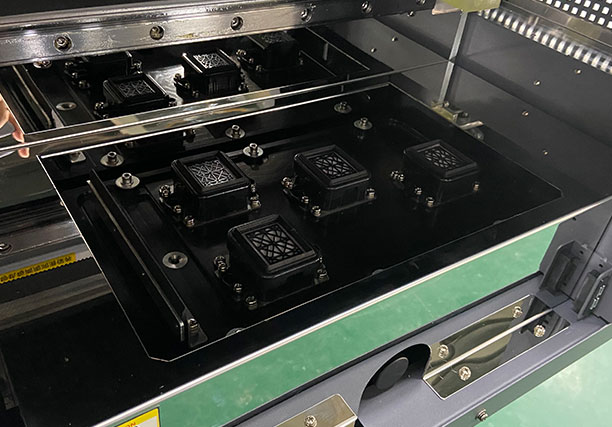

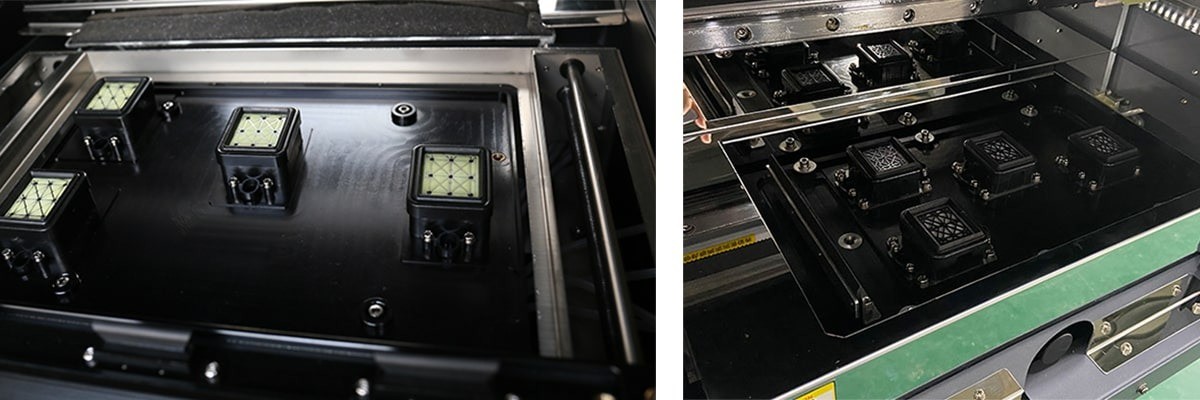

3. New Integrated Head Capping Station
Fully sealed capping station, auto cleaning, flash and moisturizing, easy to operate and maintain.

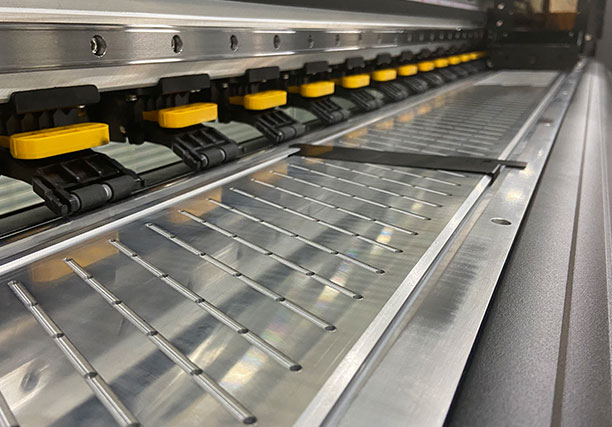

4. Imported Fluororubber Pinch Roller
lmported fluororubber pinch roller , preventing statics which may result in ink misting during printing. Specially designed pinch roller, which can be lifted up independently to eliminate wrinkle during printing.

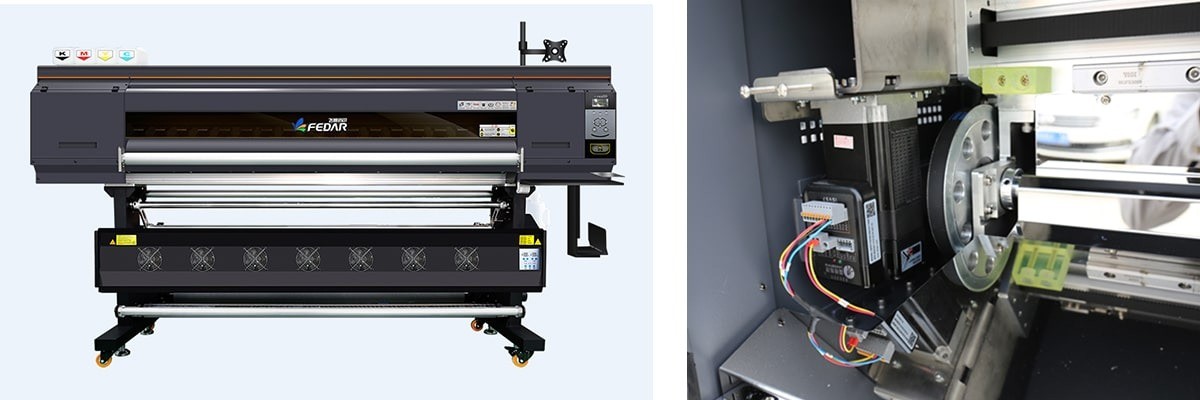

5. Industrial Motor
The feeding & take-up system is equipped with industrial motor, which adopts precise servo control to make paper moving more accurate.

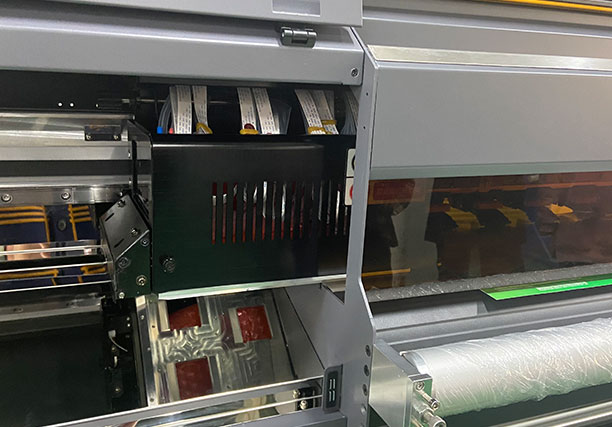

6. Anti Collision System in Carriage
lt is easy and convenient to adjust the printhead height according to different media. And anti collision system installed on both sides of carriage, which automatic detect any force on carriage way to protect the printhead inside.
