1. EPSON S3200 INDUSTRIAL GRADE PRINT HEAD

The printhead resolution is 600dpi (2 columns), and variable ink droplet technology enables multi-grayscale printing, enabling high-speed and high-quality printing. The S-shaped design achieves higher stitching accuracy for multiple print heads, enabling wide-format, multi-color printing. It occupies a smaller area and better supports the Single-Pass printing ink circulation function, making the ink droplet ejection more stable.

2. IMPORTED THK MUTE GUIDE RAIL

Japanese double THK mute guide rail, moving steadily, longer working life and reducing the resistance and noise of carriage moving during the high speed printing.

3. SPECIAL-DESIGNED AIR SUCTION PLATFORM

Unique air suction mode with stronger adsorption, which is more even for paper moving, and ensures the printing quality.

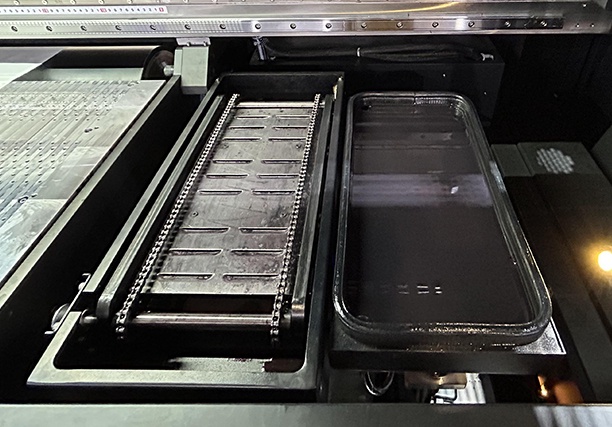

4. NEW INTEGRATED HEAD CAPPING STATION

Fully sealed capping station, auto cleaning, flash and moisturizing, easy to operate and maintain.

5. IMPORTED FLUORORUBBER PINCH ROLLER

lmportedfluororubber pinch roller , preventing statics which may result in ink misting during printing. Specially designed pinch roller, which can be lifted up independently to eliminate wrinkle during printing.

6. INDUSTRIAL MOTOR

The feeding & take-up system is equipped with industrial motor, which adopts precise servo control to make paper moving more accurate.

7. ANTI COLLISION SYSTEM IN CARRIAGE

lt is easy and convenient to adjust the printhead height according to different media. And anti collision system installed on both sides of carriage, which automatic detect any force on carriage way to protect the printhead inside.

 8. 15L super large continuous ink supply system

The 15-liter super large continuous ink supply system, combined with the negative pressure ink circuit, can achieve stable printing for a long time without ink flying.
