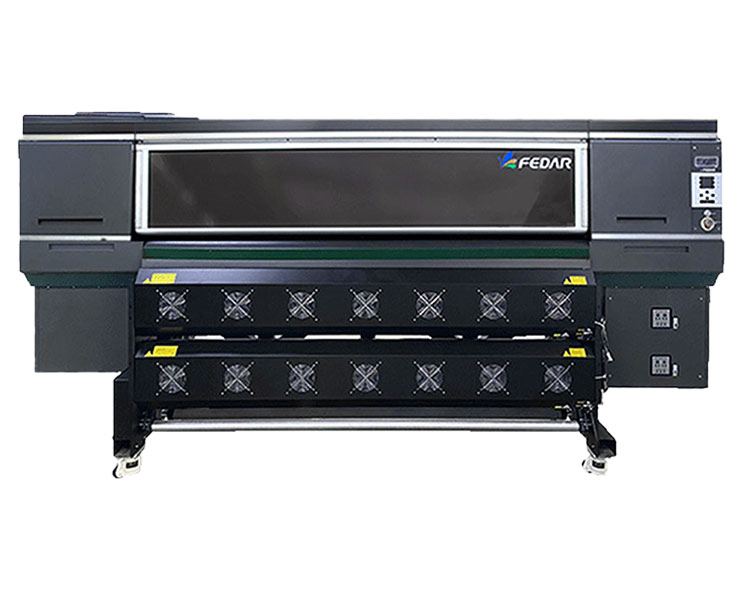

FD6194E (4 Heads*1900mm)
Fedar FD6194E Digital Sublimation Printer uses 4 Epson Original I3200-A1 Print Heads. Max Printing Width: 1900mm. Max Resolution: 3200DPI. Max Printing Speed: 150 Sqm/Hr (2pass).

VIDEO



PARAMETERS

ModelFedar FD6194E Sublimation Printer
Printing Size1900mm
Printing Speed2PASS:  150m²/h

3PASS:  110m²/h

4PASS:  90²/h

Printhead4 EPSON Original I3200-A1 Heads
Max Resolution3200DPI
Ink ColorCMYK
Ink Type Sublimation Ink
RIP Software Maintop, FlexiFRINT, ONYX, Neostampa and etc. Maintop6.1(standard Equipped)
InterfaceGigabit Port
Print File FormatBMP, TIF, JPG, PDF Etc.
Heating SystemExtra Front Heating System
Feeding MethodRoll to Roll, Leaf
Color ManagementICC Based; Density & Curves Adjustable
Power Supply50HZ/60HZ, 110~220V, 10A
Working Environment Temperature18℃-30℃ ,Humidity:35%-65%
Powder Supply

Input Voltage: 210-230VA

CMachine Printing Power:1.5KW

Dryer: Max 7KW

Working Size (L*W*H)

Dimension: 3284*1050*1720mm

 Packing: 3485*1150*1780mm

DETAILS

1. EPSON I3200-A1 printhead

FD6194E digital textile printer is equipped with 4 EPSON industrial-grade printhead, with up to 3200 nozzles, a 4-pass printing speed of up to 90 square meters/hour, and a maximum speed of 150 square meters/hour; TFP film piezoelectric technology, comprehensive upgrade of printing; 2.5PL variable point , presenting exquisite printing quality; speed and quality are simultaneously improved.

Japenese THK guide rail

2. LIFTABLE HEAD CAPPING STATION

FD6194E digital textile printer is equipped with advanced intelligent printhead cleaning and moisturizing device providing safe and convenient printhead cleaning and maintenance functions, more convenient operation and maintenance.


3. IMPORTED THK MUTE GUIDE RAIL

Japanese double THK mute guide rail, moving steadily, longer working life and reducing the resistance and noise of carriage moving during the high speed printing.

日本 THK导轨-min.jpg

4. BULK TANKINK SUPPLY SYSTEM

Four units of 3L super large capacity ink tanks provide ink independently and continuously, which guarantees the long term continuity of ink output.



5. ANTI COLLISION SYSTEM IN CARRIAGE

The position of the printhead can be adjusted according to different printingmedias and anti-collision devices at bothends.

carriage

6. HIGH-END IMPORTED PARTS

German imported IGUS drag-chain and Japanese NSK bearings to ensure the high-efficiency and high quality pictures output.

BULK TANKINK SUPPLY SYSTEM.
