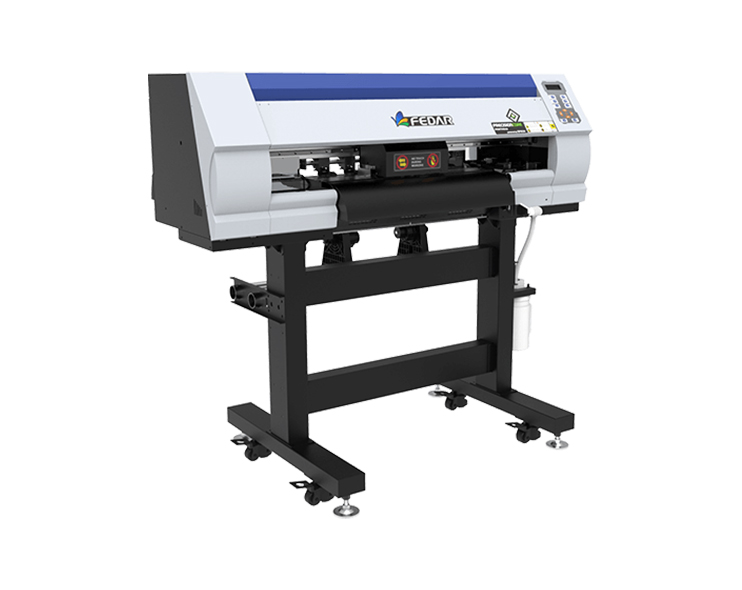

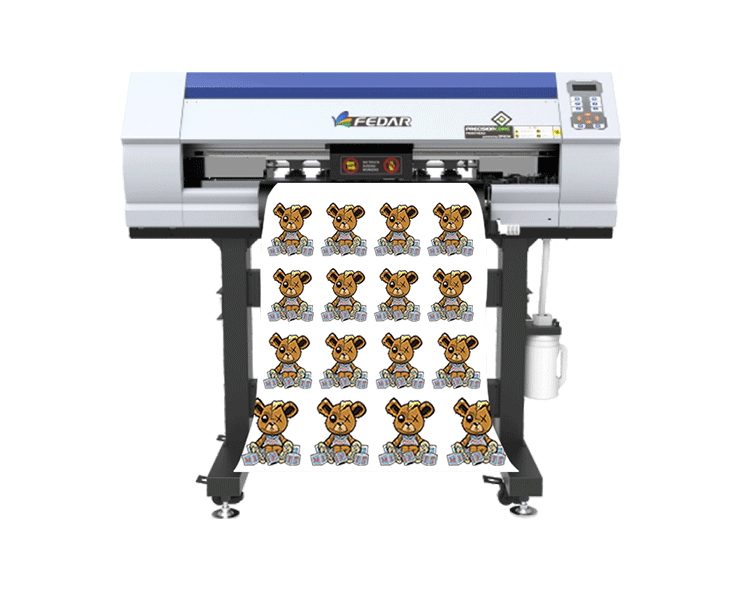

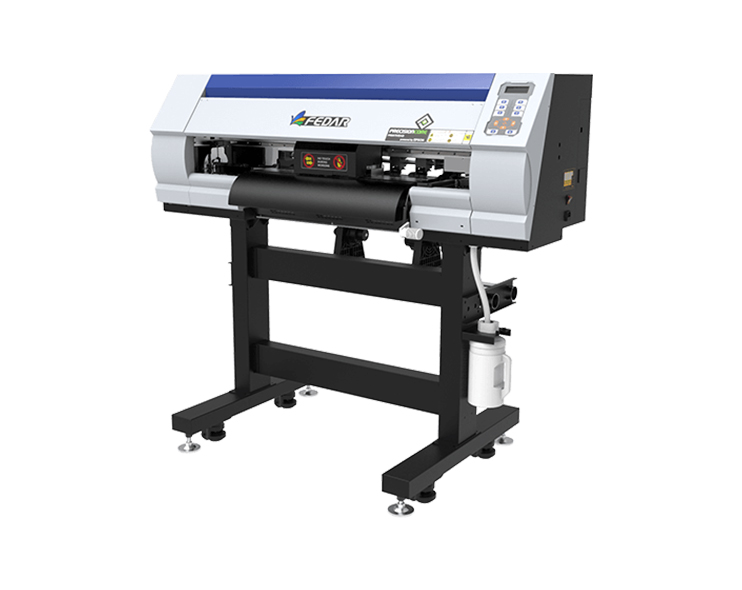

FD65 Double Head 600mm DTF Printer
Fedar FD65 DTF Printer uses double Epson Original I3200-A1 Print Heads. Max Printing Width: 600mm. Max Resolution: 3200DPI. Max Speed: 8m²/h

VIDEO

PARAMETERS

ModelFD65(double-head)
PrintheadTType: EPSON I3200-A1  Quantity: 2
Print Width600mm
Print Speed

6 PASS:8m²/h

8 PASS:6m²/h

Ink ColorC M Y K + W
Ink TypePigment Ink
RIP SoftwareMaintop, FlexiPRINT
Transmit PortGigabit LAN
Print MediaPet Film
Print File FormatTIF, JPG, PDF Etc.
System ConfigurationWindows XP/Win7/Win8/Win10
Working EnvironmentTemp: 18C-30C, Humidity: 35%-65%
Power50HZ/60HZ, 220V, 10A
Package Size1760*1000*750mm

DETAILS

01 FEDAR D65 65cm DTF DIRECT TO FILM PRINTER

Fedar FD65 60cm DTF Printer No need Engraving, No need plate hollow out, offset heat press printing, easily and friendly operation water based pigment ink printer.

Adopt Epson Original E3200-A1 Printhead, cost effective, 6 PASS  8m²/h  ,  8 PASS  6m²/h.


02 EPSON ORIGINAL I3200-A1 PRINT HEAD OF FD65 DTF PRITNER

Fedar FD65 DTF Dirct to Film Printer uses double Epson Original I3200-A1 print heads. Max Printing Width: 600mm. Max Resolution: 3200DPI.

Epson's unique Variable Sized Droplet Technology (VSDT) delivers smooth gradation by freely control to eject the droplet volume. Ink ejection of up to 4 colors realize with high resolution (600 dpi/colour). In addition to the I3200, I1600 has also been added to the lineup in order to meet the various customer needs.

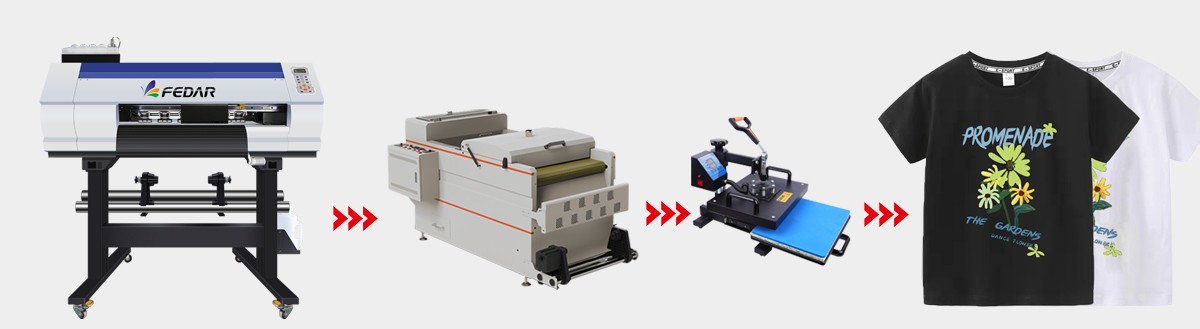

03 FEDAR FD65 DTF PRITNER WORKING PROCESS

Fedar FD65 DTF Direct to Film Printer Working Process The direct to film heat transfer process is to print pigment ink and white ink directly on PET film. The printer is connected to a powder shaking machine. After the PET film is printed, it goes through powder shaking machine and sprinkles hot melt adhesive powder on the corresponding pattern. Finally, dry and fix the color and roll it in one step.


04 CHARACERISTICS OF FD65 DTF PRINTER

Fedar FD65 DTF Printer use Original Epson I3200-A1 Heads. PrecisionCore print head has proven high durability and extended service life. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the per fectly round ink droplets are placed accurately and consistently.

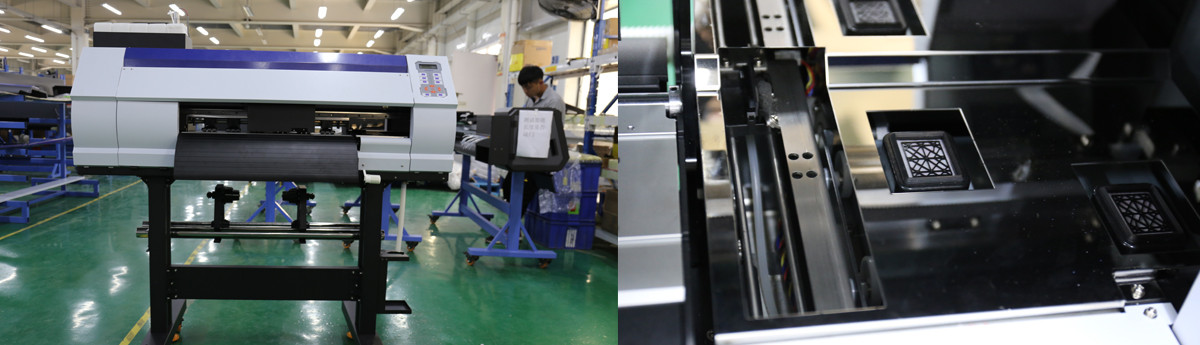

05 CHARACERISTICS OF FD65 DTF PRINTER

Capping Station of Fedar FD65 DTF Direct to Film Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

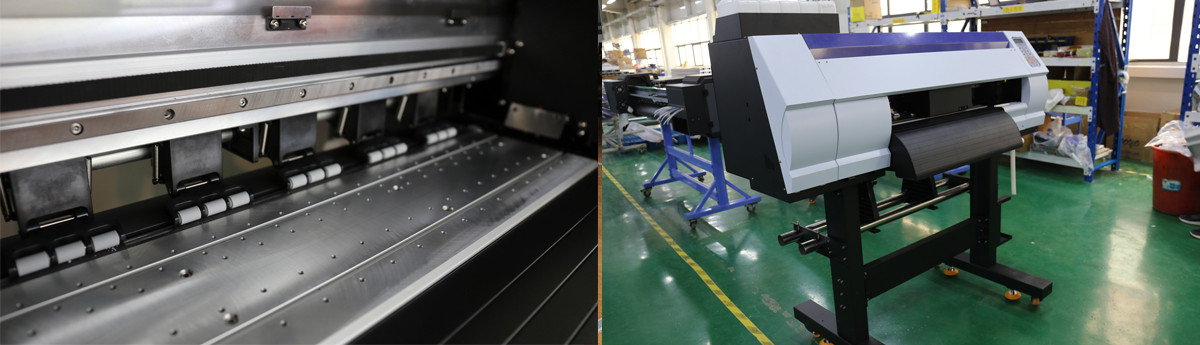

06 CHARACERISTICS OF FD65 DTF PRINTER

High-Precision Platform of Fedar FD65 DTF Direct to Film Printer The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.


07 CHARACERISTICS OF FD65 DTF PRINTER

Fedar FD65 DTF Direct to Film Printer core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

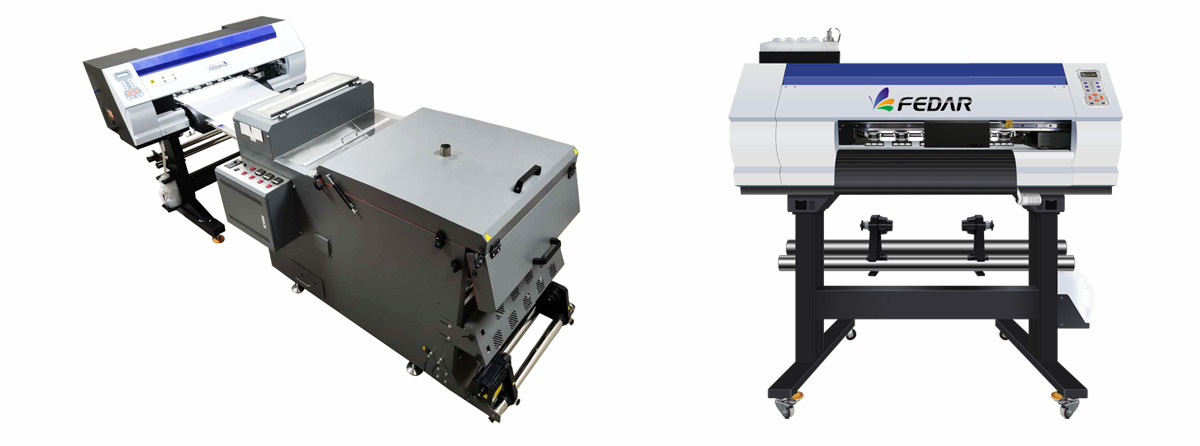

08 POWDER SHAKING MACHINE

Easy Use

Universal Matching

Suit for Digital PET Film Print

Offset Print Transfer, One-Time Forming

No Need Cut, No Need Tear, Less Manpower


09 USAGE OF FEDAR FD70 DTF DIRECT TO FILM PRINTER

Fedar FD65 DTF Direct to Film Printer no need to engrave the exhaust and lamination, effectively improving production efficiency, unlimited patterns, natural hollowing more light and breathable.Short cycle time and fast delivery, break through the traditional process of color plate making, digital output without plate making, one piece to order.Cost-effective, no need for high investment in equipment and sites, greatly reducing investment costs.


10 PRINTING MATERAILS
